| 型號 | 規(guī)格尺寸 | 齒數(shù) | |||

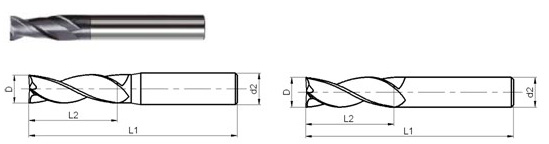

| D (h10) | d2 （h6） | L1 | L2 | Z | |
ME-2EA30M-D1.5 | 1.5 | 3 | 40 | 6 | 2 |
ME-2EA30M-D2 | 2 | 3 | 40 | 9 | 2 |
ME-2EA30M-D2.5 | 2.5 | 3 | 40 | 9 | 2 |
ME-2EA30M-D3 | 3 | 3 | 40 | 12 | 2 |
ME-2EA30M-D3.5 | 3.5 | 4 | 50 | 12 | 2 |
ME-2EA30M-D4 | 4 | 4 | 50 | 14 | 2 |
ME-2EA30M-D4.5 | 4.5 | 6 | 50 | 14 | 2 |
ME-2EA30M-D5 | 5 | 6 | 50 | 20 | 2 |
ME-2EA30M-D5.5 | 5.5 | 6 | 65 | 20 | 2 |
ME-2EA30M-D6 | 6 | 6 | 65 | 20 | 2 |
ME-2EA30M-D6.5 | 6.5 | 8 | 70 | 20 | 2 |
ME-2EA30M-D7 | 7 | 8 | 70 | 20 | 2 |
ME-2EA30M-D7.5 | 7.5 | 8 | 70 | 20 | 2 |
ME-2EA30M-D8 | 8 | 8 | 70 | 20 | 2 |
ME-2EA30M-D8.5 | 8.5 | 10 | 80 | 20 | 2 |
ME-2EA30M-D9 | 9 | 10 | 80 | 20 | 2 |
ME-2EA30M-D9.5 | 9.5 | 10 | 80 | 25 | 2 |
ME-2EA30M-D10 | 10 | 10 | 80 | 25 | 2 |
ME-2EA30M-D11 | 11 | 12 | 90 | 25 | 2 |
ME-2EA30M-D12 | 12 | 12 | 90 | 25 | 2 |
ME-2EA30M-D13 | 13 | 14 | 100 | 30 | 2 |
ME-2EA30M-D14 | 14 | 14 | 90 | 30 | 2 |
ME-2EA30M-D15 | 15 | 16 | 100 | 30 | 2 |
ME-2EA30M-D16 | 16 | 16 | 90 | 30 | 2 |
ME-2EA30M-D18 | 18 | 18 | 90 | 30 | 2 |
ME-2EA30M-D20 | 20 | 20 | 100 | 35 | 2 |
ME-2EA30M-D22 | 22 | 20 | 100 | 35 | 2 |
ME-2EA30M-D25 | 25 | 25 | 125 | 40 | 2 |
訂貨示例： 涂層產(chǎn)品 ME-2EA30M-D5-B
未涂層產(chǎn)品 ME-2EA30M-D5
